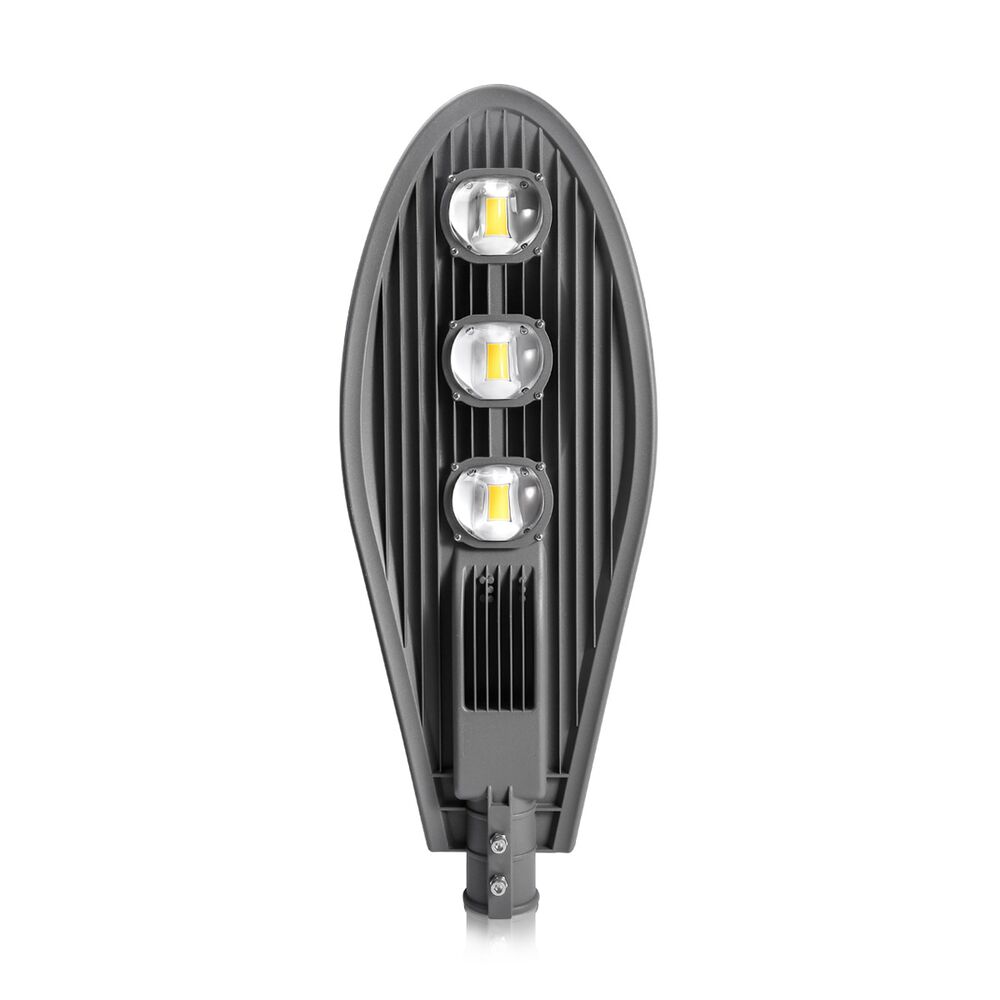

LE 180W High Output LED Street Light Fxitures, 17100lm, 6000K, 500W HPS Equiv, Daylight White, Parking Lot LED Lights, Street & Roadway Lighting
Save electricity bill. Replace 500W HPS (High Pressure Sodium) by 180W LED.Save over 60% on electricity bill of lighting.Maintenance-free. Extremely long life reduces re-lamp frequency. Save labor cost to replace lamps with short lifespan. Excellent lens design. Advanced and professional light distribution for street lighting. Great uniformity. High efficiency. Output is 17100lm. Efficiency is up to 100lm/w
Save electricity bill. Replace 500W HPS (High Pressure Sodium) by 180W LED. Save over 60% on electricity bill of lighting.
Maintenance-free. Extremely long life reduces re-lamp frequency. Save labor cost to replace lamps with short lifespan.
Excellent lens design. Advanced and professional light distribution for street lighting. Great uniformity. High efficiency. Output is 17100lm. Efficiency is up to 100lm/w
Enhanced safety. With a superior optical control, LED road lighting fixtures efficiently generates uniform white light, and will enhanced the safety of street.
Durable housing. Rugged die-cast aluminum, scratch and fade resistant.
Excellent appearance. Tempered Glass. Safe and extremely high light transmittance.
Eco-Friendly. No lead or mercury.
No Hazardous Emissions. No UV or IR Radiation.
Solid State. Shockproof and vibration proof.
Input Voltage: 90-264 V AC.
Rated Center Beam Intensity: 4858.3 cd
Lamp Pole Size: Φ 60 - 68 mm (can be ajusted by screws, please use M10 hexy key to loose/tighten the screws), please note that the pole is not included.

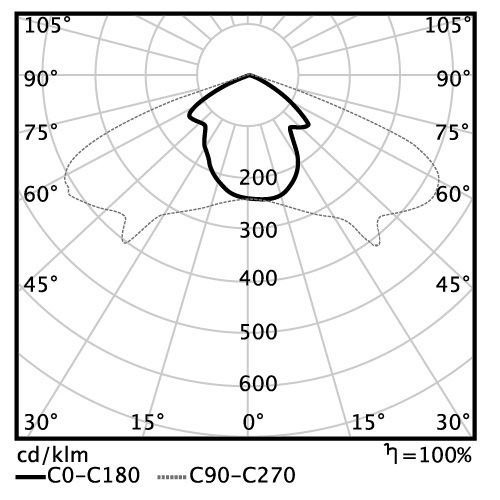

Please refer to this photometric report to select the mounting height of the lamp.
How to Install
1. Loosen the screws of lamp arm.
2. Connect the lamp wires to the mains supply.
3. Set the lamp arm into the lamp pole and tighten the screws.
Notes: If the dimension of the lamp arm is not compatible with the pole, you need to buy a pole-arm adapter.
|SKU||6200009-DW||Color Consistency (SDCM)||< 7|
|Power Consumption (W)||180||Switching Cycles||25,000|
|Brightness (lm)||17100||HPS Equivalent(W)||500|
|LED Quantity||3||Light Color||Daylight White|
|Color Temperature (K)||6000||Dimmable||Non-dimmable|
|CRI||> 72||Beam Angle (Degree)||130|
|Input Voltage (v)||120-277V AC||Frequency (hz)||50-60|
|Power Factor||> 0.95||Length (in)||34.65in|
|Width (in)||13.39in||Height (in)||4.8in|
|Net Weight (oz)||261.03||Net Weight (lb)||16.31|
|Protection Rating||IP65||Package Quantity||Pack of 1 Unit|
