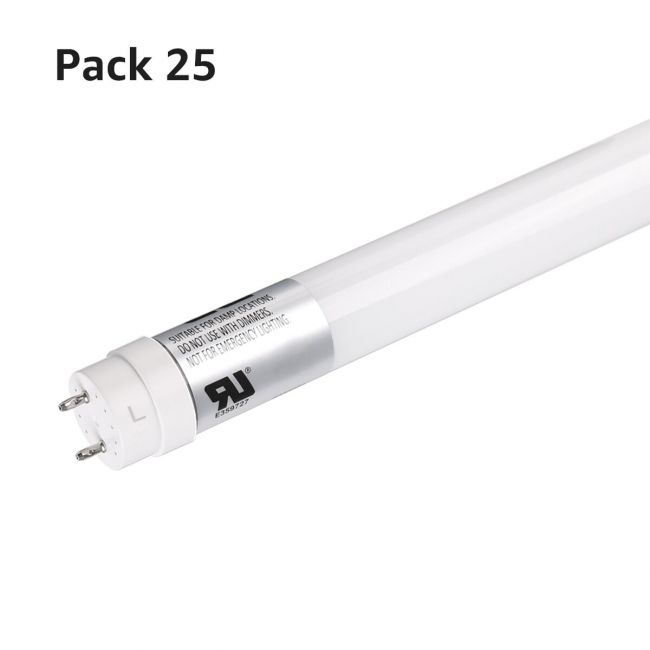

25 Pack 17W 4ft T8 LED Tube Light, Type B Ballast Bypass Double Ended Power, 2200lm Daylight White Tube Lighting for Office & Workshop
Ballast Bypass: Designed for instant start T8 ballasts with double end power. It is compatible with the existing fixture, you just need simply remove the ballast.
Super Bright: 17W T8 4ft double ended LED tube light provides 2200 lumens of light immediately, up to 129lm/w with high efficiency without noise. It helps cut down your electricity bill by nearly 50%.
No Over-heating: This type B LED T8 bulbs is equipped with in-built LED copper wire string, which runs very cool. Perfect for your workshops, garages, stairwells, warehouses, basements, etc.
5-Year Warranty: Lepro 4 foot type B double ended LED replacement for fluorescent tubes provide 5 years unlimited warranty. If you have any problem with the tube light, please contact us for an easy and quick solution!
Choose the Perfect Lepro LED Tube Lights
Product | 4ft T8 Type B LED Tube Light View Details | 4ft T8 Type B LED Tube Light View Details | 4ft T8 Type A LED Tube Light View Details |
---|---|---|---|
SKU | 190001-DW-US-25 | 190002-DW-US-25 | 190007-DW-US-25 |
Power Consumption | 17W | 17W | 14.5W |
Luminous Flux | 2,200lm | 2,200lm | 2,200lm |
Tube Types | Type B | Type B | Type A |
Power Type | Single Ended Power | Double Ended Power | Double Ended Power |
Ballast Compatibility | Ballast Bypass | Ballast Bypass | Ballast Compatible |
Dimensions | φ1.10'' × 48''L | φ1.10'' × 48''L | φ1.10'' × 48''L |
Download IES File | Download | Download | Download |
Key Features of Lepro Double Ended Type B LED Tube Light

Super Bright
Every Lepro T8 LED tube bulbs can deliver up to 2200lm output. It provides 5000K ultra-bright white light to illuminate the indoor environment.

Energy Saving
The lumen efficacy of Lepro Type B T8 LED tubes can achieve as high as 130lm/W. 17 W Type B LED light is equivalent to a 32W traditional fluorescent light, cutting your electricity bill by a half.

Professional LED Driver
Lepro tube lights are equipped with professional LED drivers to meet EyeComfort requirements for flicker, strobe, glare, and color rendition.

No Flicker
Lepro type B T8 LED tube light with double ended power does not flicker, which is important to protect human eyes.

5 Year Warranty
Lepro are designed to be one of the most reliable and quality LED light supplies and we provide a standard five-year warranty for this tube light.

No warm-up time
Lepro type B double ended LED lights for fluorescent fixtures are designed to turn on instantly with full light output. This means that you turn on the light to get full brightness the first time.
How to Install T8 4ft LED Tube Lighting



Q: How to install Lepro Type B Double Ended T8 Tube Light
A: 1. Disconnect main power before installation.
2. Cut the output wires on the ballast.
3. Connect the N and L wires to the mains with the 2-terminal lamp holder input wires.
4. Install the bracket and the lamp.
Widely Application for Lepro Type B Double Ended LED Tube Lighting Fixtures

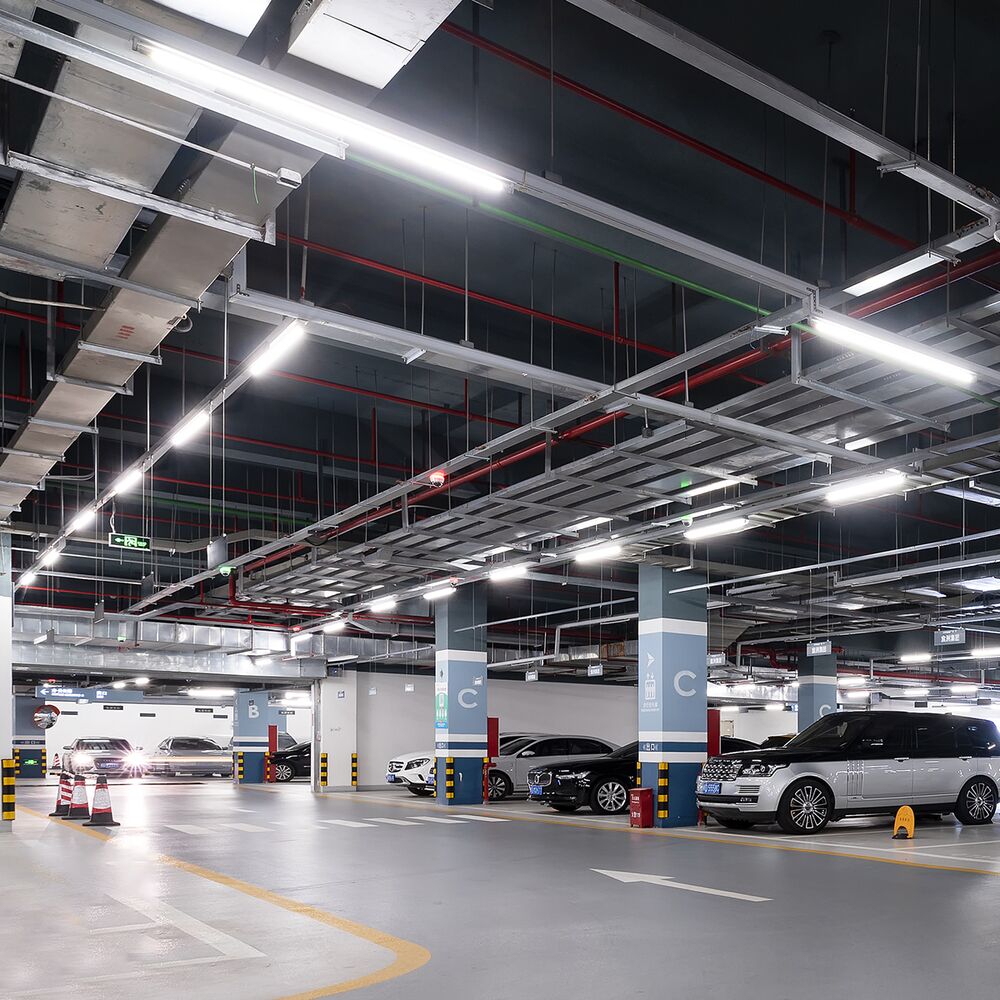

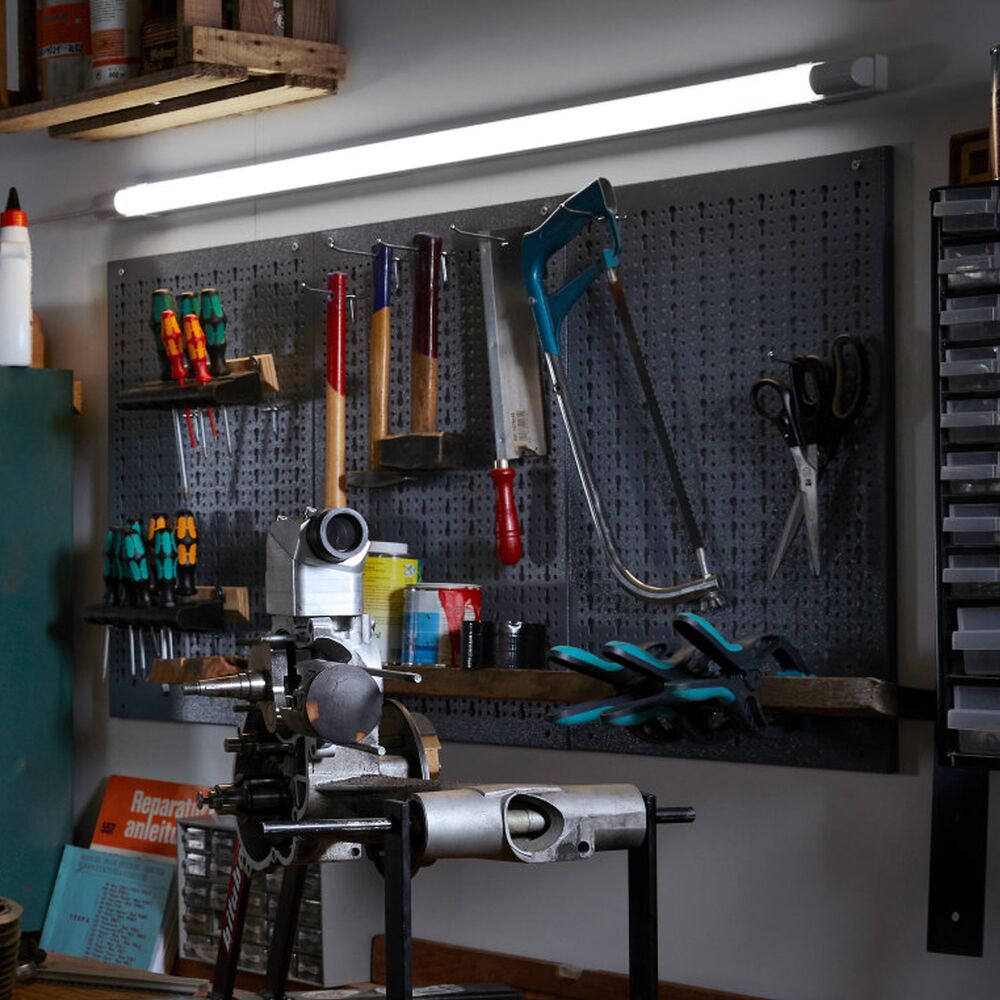

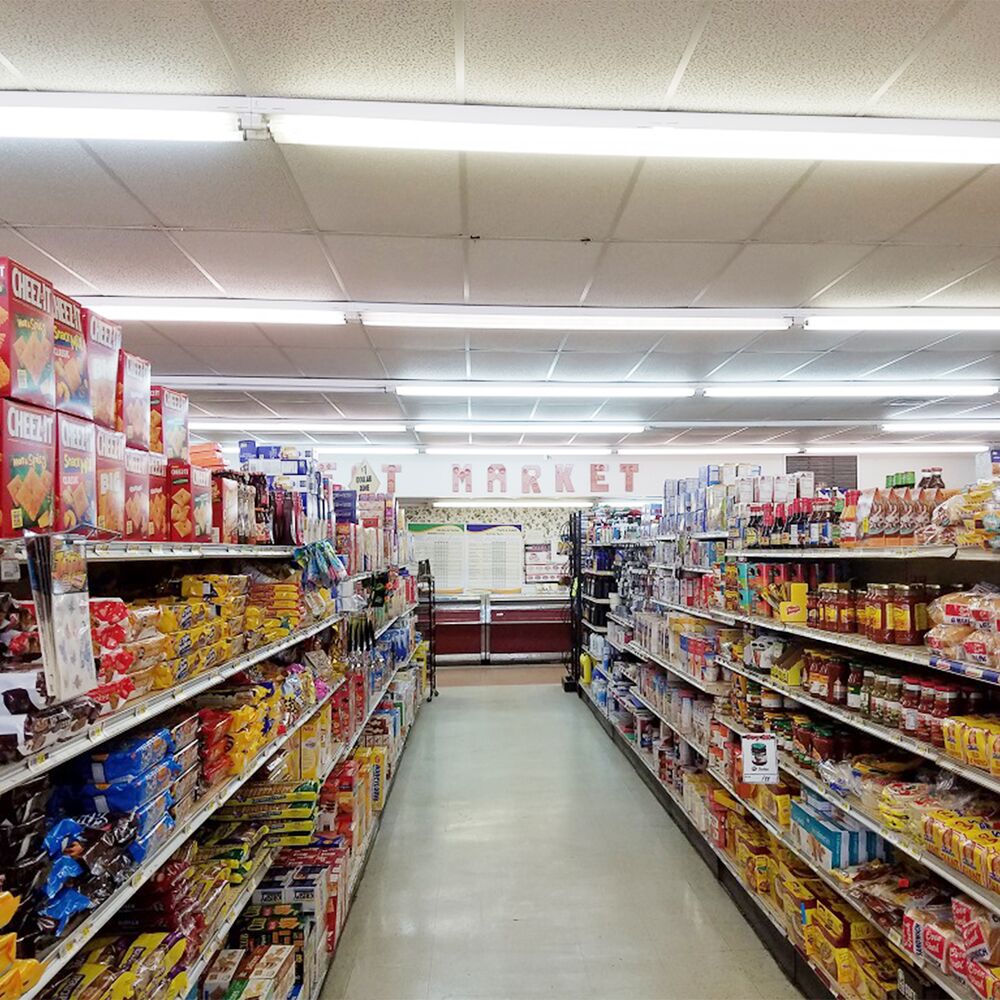

The Lepro type B LED tube light is a great option for lighting up the workshops, restaurants, garages, or basements with bright light. It is an ideal choice for various spaces like schools, retail spaces, offices, hospitals, and more.
SKU | 190002-DW-US-25 | Color Consistency (SDCM) | <6 |
Power Consumption (W) | 17 | Brightness (lm) | 2200 |
LED Quantity | 108 | Light Color | Daylight White |
Color Temperature (K) | 5000 | Dimmable | Non-dimmable |
CRI | >80 | Beam Angle (Degree) | 240 |
Input Voltage (v) | 120-277V AC | Frequency (hz) | 60 |
Power Factor | >0.9 | Lifespan (h) | 50000 |
Material | Glass | Waterproof | No |
Protection Rating | IP20 | Package Quantity | Pack of 25 Units |
Warranty | 5 Years |
