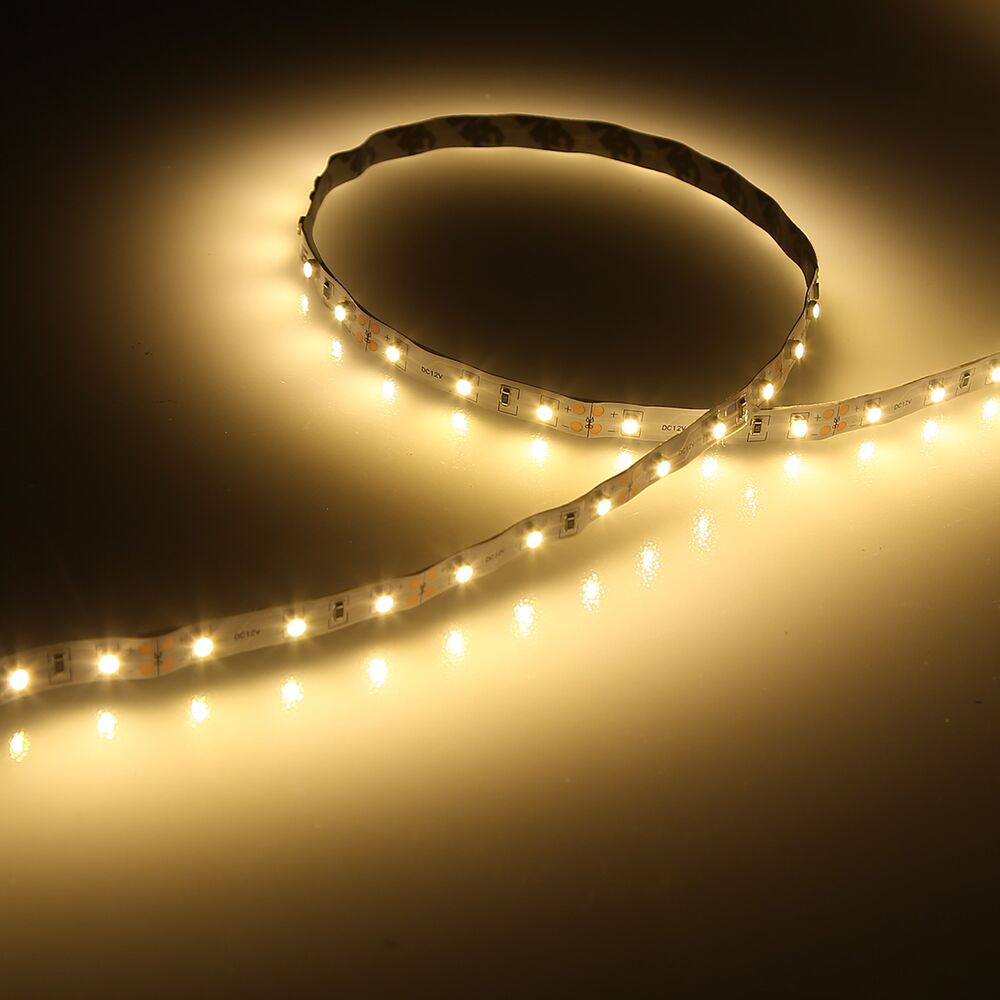

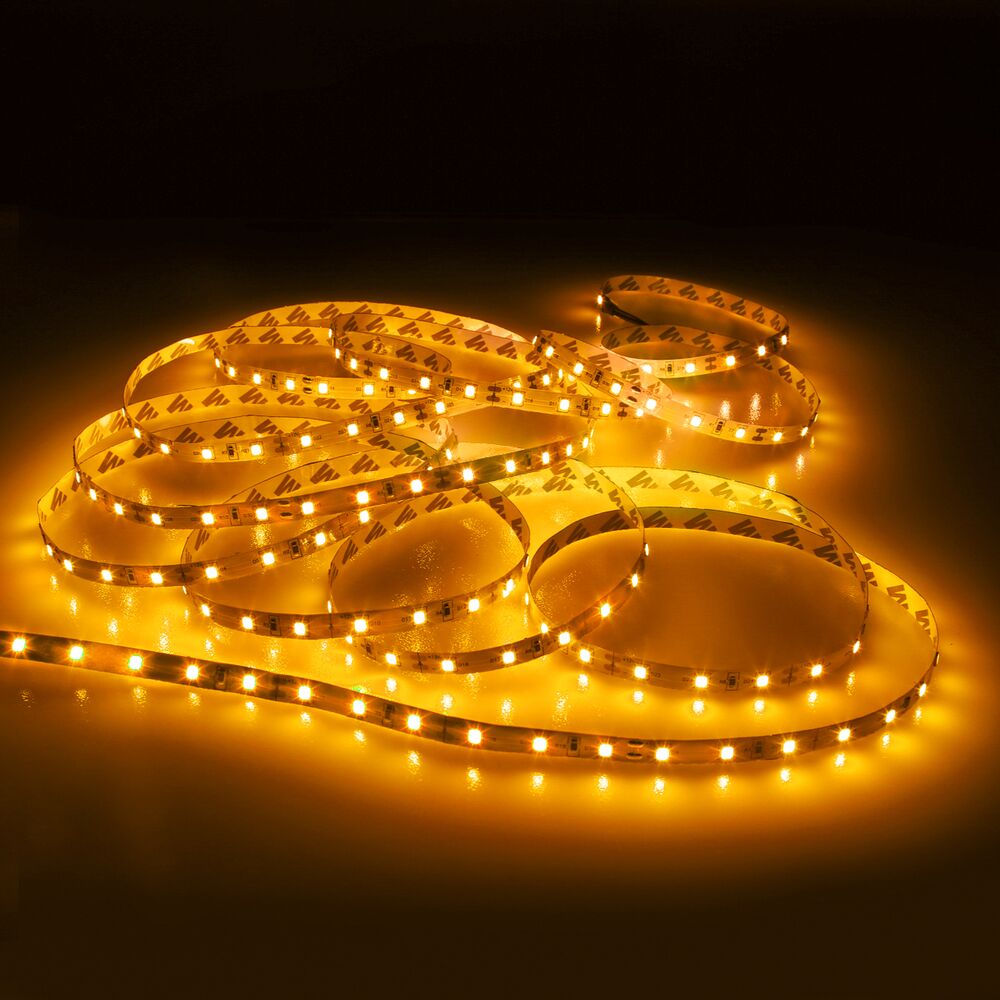

LE 12V LED Strip Light, Flexible, Warm White, SMD 2835, 5m Tape Light for Home, Kitchen, Party, Christmas and More, Non-waterproof
Easy Installation. Self-adhesive back with adhesive tape for safe and easy application.
Safe to use. The working voltage is 12V. Extremely low heat. It is touchable and safe to children.
Cuttable and linkable. Easy to cut and use with Lighting EVER accessory. It can be cut every 3 LEDs along the cutting marks, without damaging the rest strips.
Light Color: Warm White
Size of LEDs: 2835
Length of a tape: 16.4ft
LEDs Quantity: 300
Working Voltage: 12V DC
Self-adhesive back with adhesive tape for safe and easy application.
Safe to use
The working voltage is 12V. Extremely low heat. It is touchable and safe to children.
Cuttable and linkable
Easy to cut and use with Lighting EVER accessory. It can be cut every 3 LEDs along the cutting marks, without damaging the rest strips.
Slim, compact and flexible PCB strip. Mount end-to-end for bendable or angled patterns, or in continuous rows.
Reduce re-lamp frequency
Lifespan is over 50000 hrs. Save effort and maintenance costs on changing lights frequently.
Eco-friendly. RoHS compliant
No battery. No lead or mercury. No UV or IR Radiation.
1 x 5M 2835 Non-waterproof Warm White LED Striplight
1. The power adaptor is required but not included, so you will need to buy it extra, please search 5000028 or 5000030.
2. Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage of this adaptor.
3. We don't recommend you to connect strip to more than 5M in series (may not work well because of the voltage drop).
4. Please unroll the strip light before light it up.
How to Install Guide
Diameter of DC jack/connector: interior 2.1mm ; exterior: 5.5mm
Connecting power to single colour light strip without dimmer
24W/36W/60W Power Adapter (not included, please search 5000067, 5000028 or 5000030) + 5M LED Striplight (included)
Connecting two or more single colour strips with only one power in parallel
N*24W Power adapter + N-way DC splitter (easily get 1 on amazon) + N*5M LED light strip
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage of this adaptor

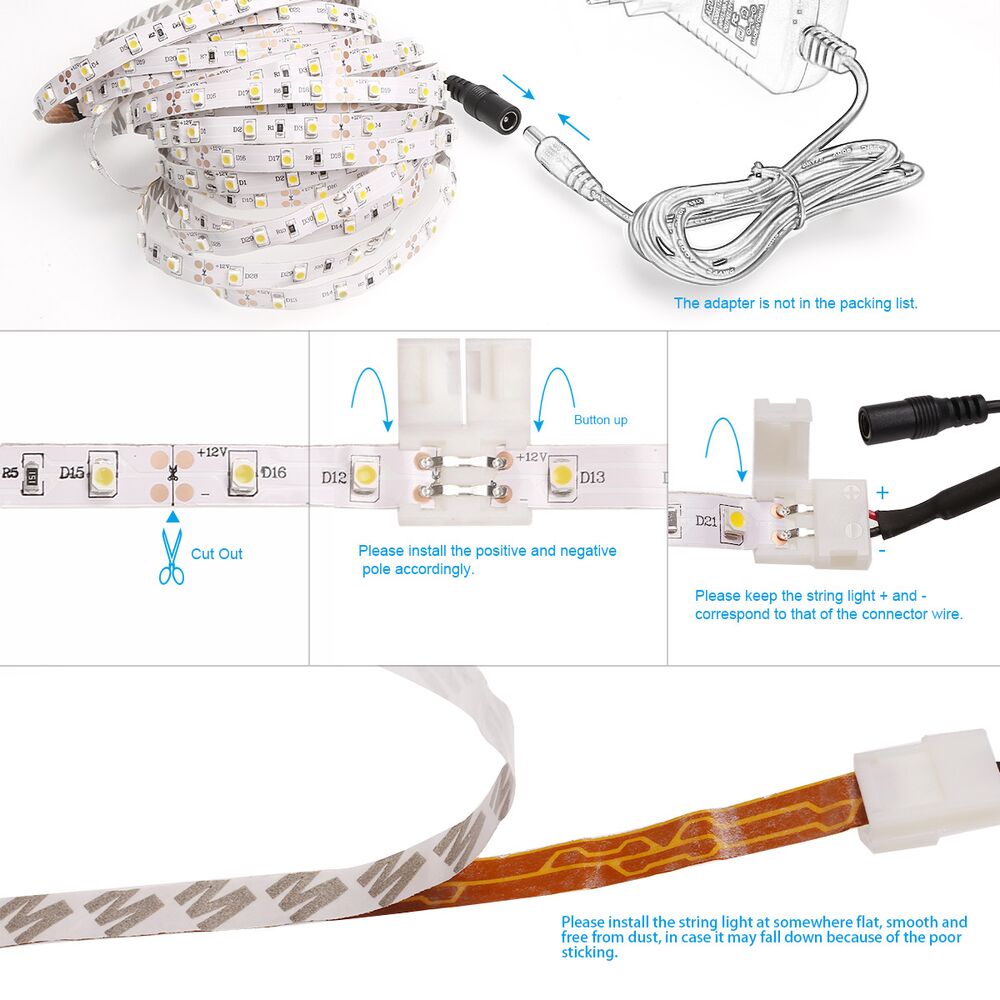

The cut points can be found every 3 LEDs, usually with solder pads.
You can simply cut to the desired length using a pair of scissors along the cut point line.
You can join/connect pieces of cut LED strip lights together using the solderless connector
1. Open the plastic housing up;
2. Slide both sides of the LED tape into the connector;
3. Clip-on the connector into place until you hear a snap.
Tips: please choose the right connector for your strip
Width: 10mm for 5050 tape, 8mm for 2835 tape;
Pin: 2-pin for single colour strip, 4-pin for RGB strip
|SKU||4100057-WW||LED Type||2835 SMD LED|
|LED Quantity (Units/M)||60||Brightness (lm/m)||300|
|EAN Code||4894495002436||Rated lifetime (h)||50,000|
|Switching Cycles||25000||Warranty||1 Year|
|Package Quantity||Pack of 1 Unit||Input Voltage (v)||12 DC|
|Light Color||Warm White||Color Temperature (K)||3000|
|Width (in)||0.31||Length (in)||196.85|
