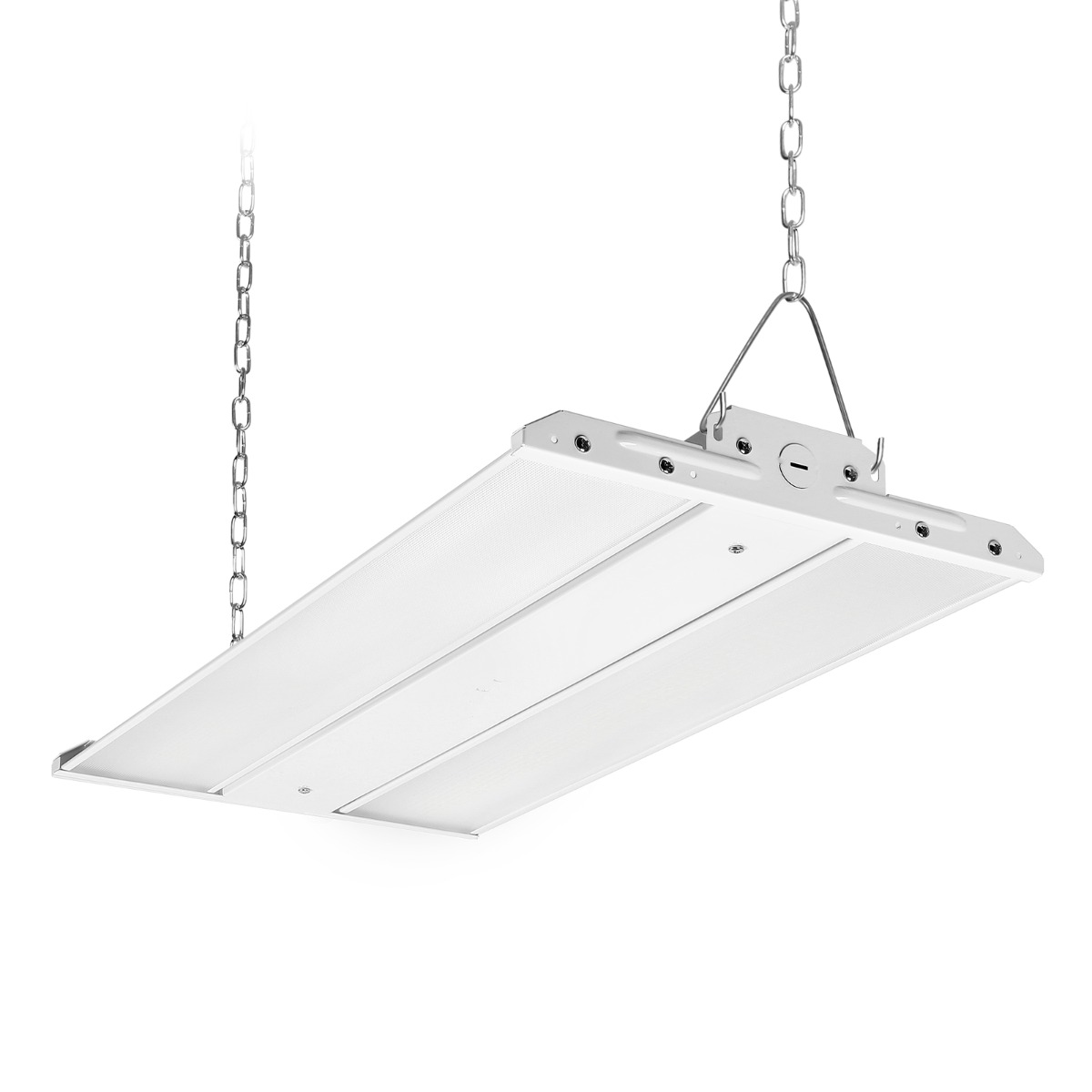

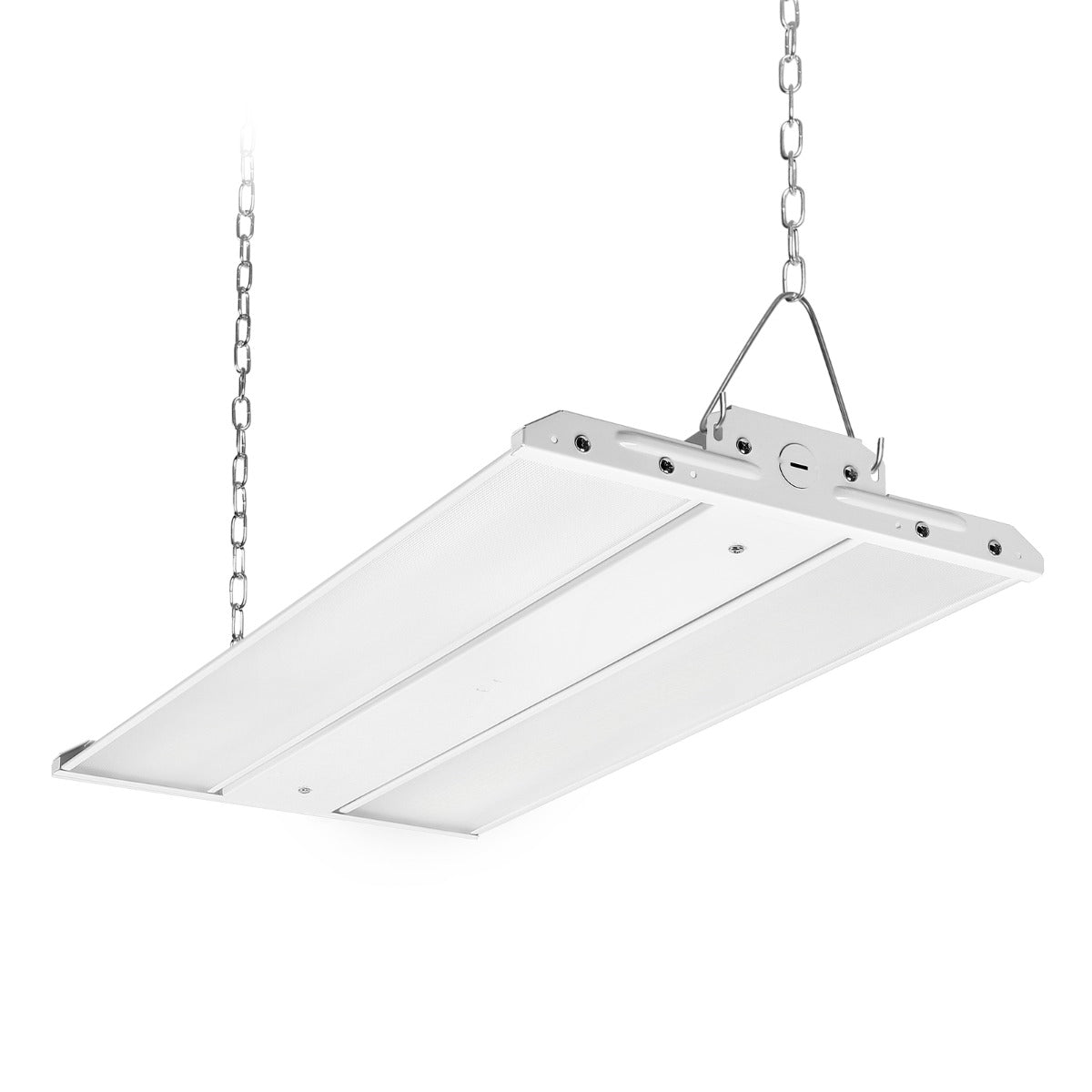

23,100 Lumens, 165W 2ft Dimmable Linear LED High Bay Light for Warehouses, Factories, 400W Metal Halide Equivalent, White 5000K, UL Listed

23,100 Lumens, 165W 2ft Dimmable Linear LED High Bay Light for Warehouses, Factories, 400W Metal Halide Equivalent, White 5000K, UL Listed 2 5 5 1
$109.00
SKU
350012-NW-US
10%+ discount for business users Create a free business account
FREE 1-5 Days Shipping within U.S.
165W
220W
Only 43 left in stock

High Efficiency and Cost-Saving: The Lepro 165W 2ft LED Linear High Bay Lights provide up to 23,100 lumens of 5000K bright white light. When compared with a 400W metal halide light, this will save you around 60% in energy costs.

Excellent Quality: Lepro’s 165W Linear LED High Bay Lights are UL-listed with a safety guarantee; in addition, we also offer a five-year warranty for 100% customer satisfaction. Our lights are safe to operate on any voltage ranging from 120V to 277V. Our light sources emit flicker-free light and are equipped with an anti-surge protection to protect the lamp from voltage spikes.

Easy Installation: The industrial-grade Lepro 165W Linear LED High Bay Lights can easily be mounted on ceilings with the help of chains provided alongside your new fixture.

Dimmable: These lights are compatible with a wide range of 1-10V dimmers. In general, their brightness level can be adjusted anywhere from 10% to 100%, so you can create your desired atmosphere and lighting needs whatever the time of day or night.

Widely Used: The Lepro 165W Linear High Bay LED Light are the ideal lighting fixture for high ceilings, particularly in large spaces such as warehouses, workshops, department stores, stadiums, garages, factories, etc.



Choose the Perfect Lepro LED High Bay Light

Product 100W LED UFO High Bay Light View Details 150W LED UFO High Bay Light View Details 240W LED UFO High Bay Light View Details 165W LED Linear High Bay Light View Details 220W LED Linear High Bay Light View Details
Sku 350009-NW-US 350010-NW-US 350011-NW-US 350012-NW-US 350013-NW-US
Power Consumption 100W 150W 240W 165W 220W
HID Equivalent 250W 400W 1000W 600W 800W
Luminous Flux 14,500 lm 21,750 lm 34,800 lm 23,100 lm 30,800 lm
Dimmable 0-10V 0-10V 0-10V 1-10V 1-10V

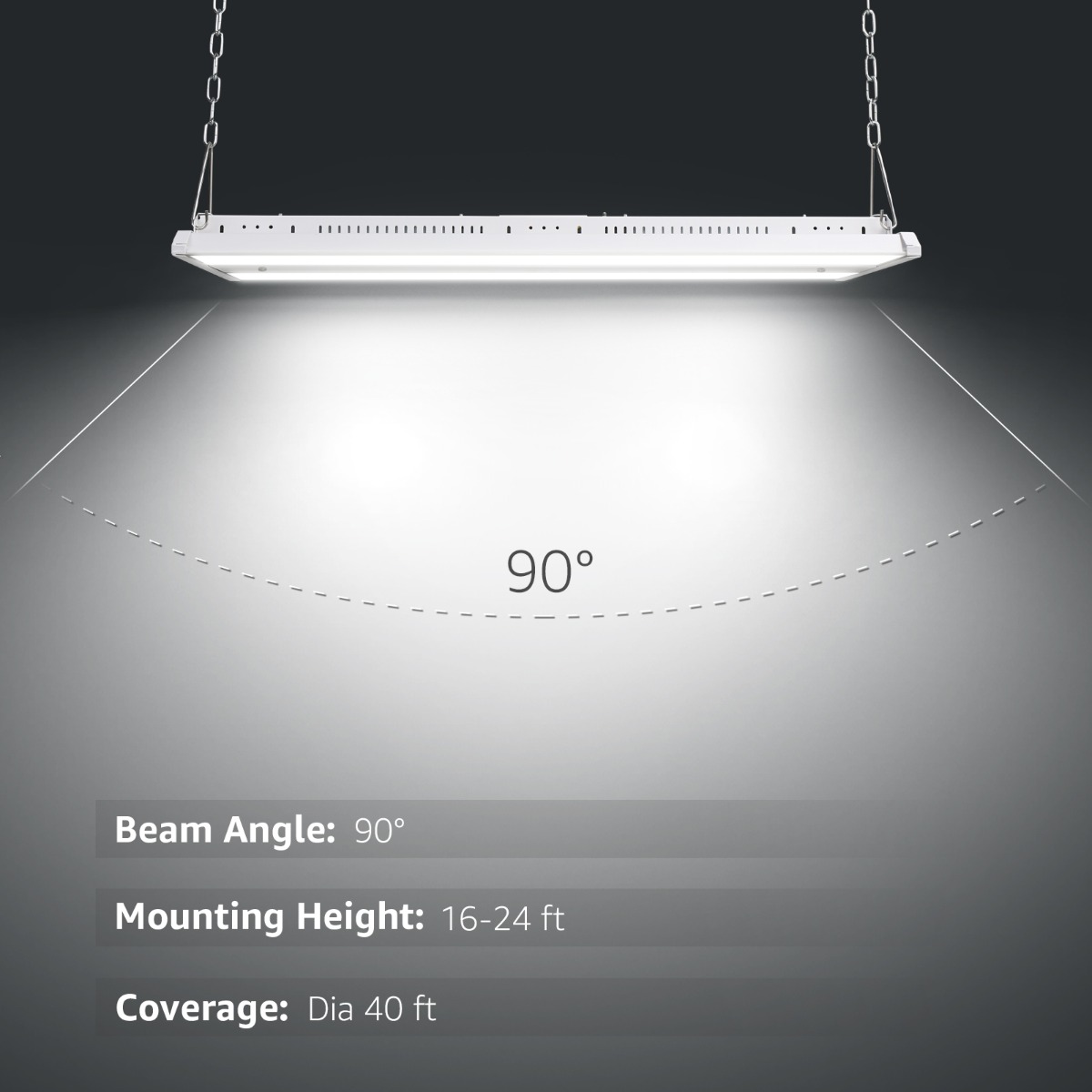

Recommended Mounting Height 12-18 ft 14-22 ft 19-28 ft 16-24 ft 18-28 ft
Lighting Coverage φ35 ft φ40 ft φ50 ft φ40 ft φ45 ft
Dimensions φ11.81" x 6.61" H φ11.81" x 6.61" H φ14.17" x 7.44" H 24.80"L x 11.81" W x 1.89" H 24.80"L x 14.17" W x 1.89" H
Download IES File Download Download Download Download Download

Best 165W Linear LED High Bay Lighting Fixture

165w linear led high bay light

Key Features of the 165W Lepro LED Linear High Bay Light

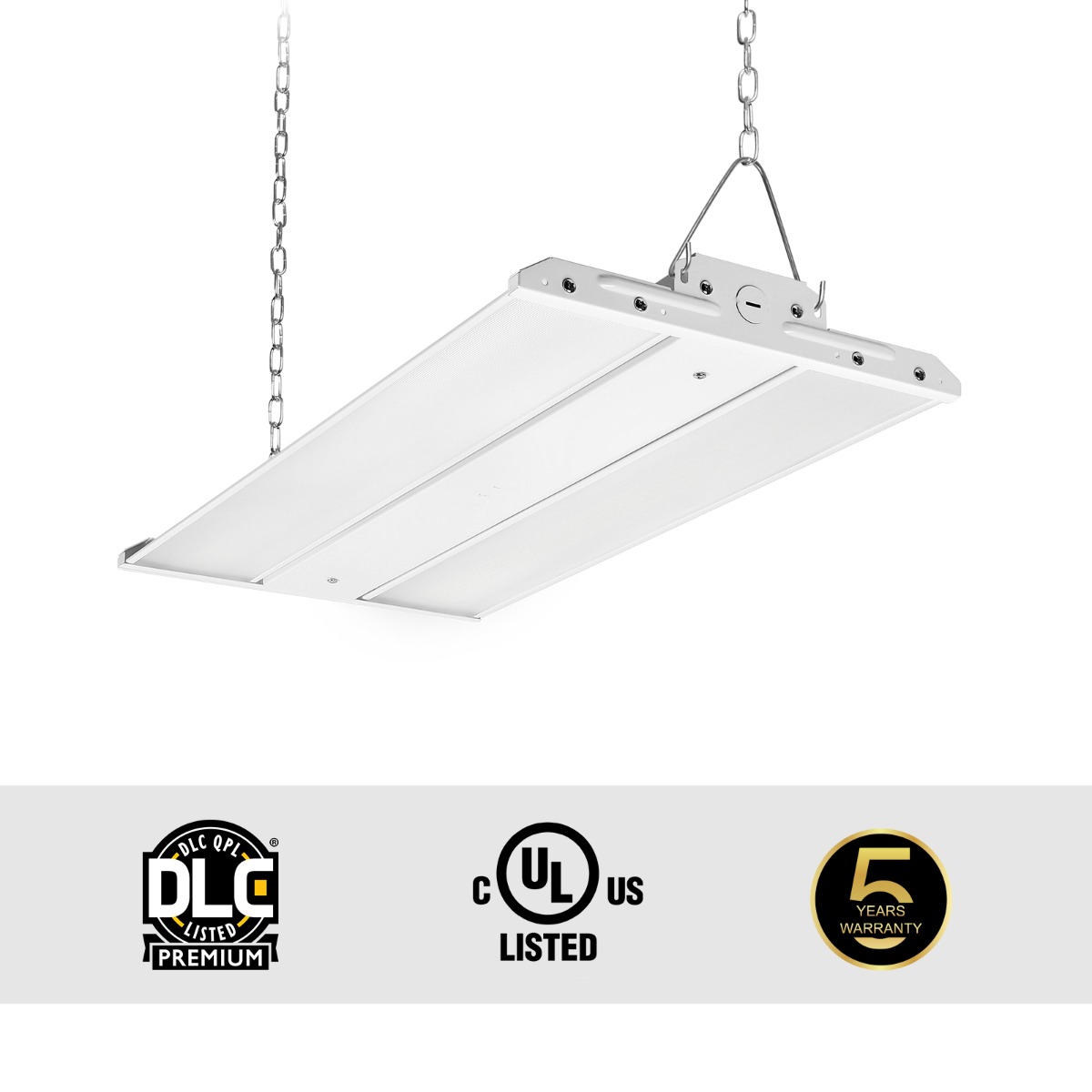

165w linear led high bay light certifications

UL Listed

Lepro’s 165W Linear High Bay Lights are UL-listed for safety insurance.

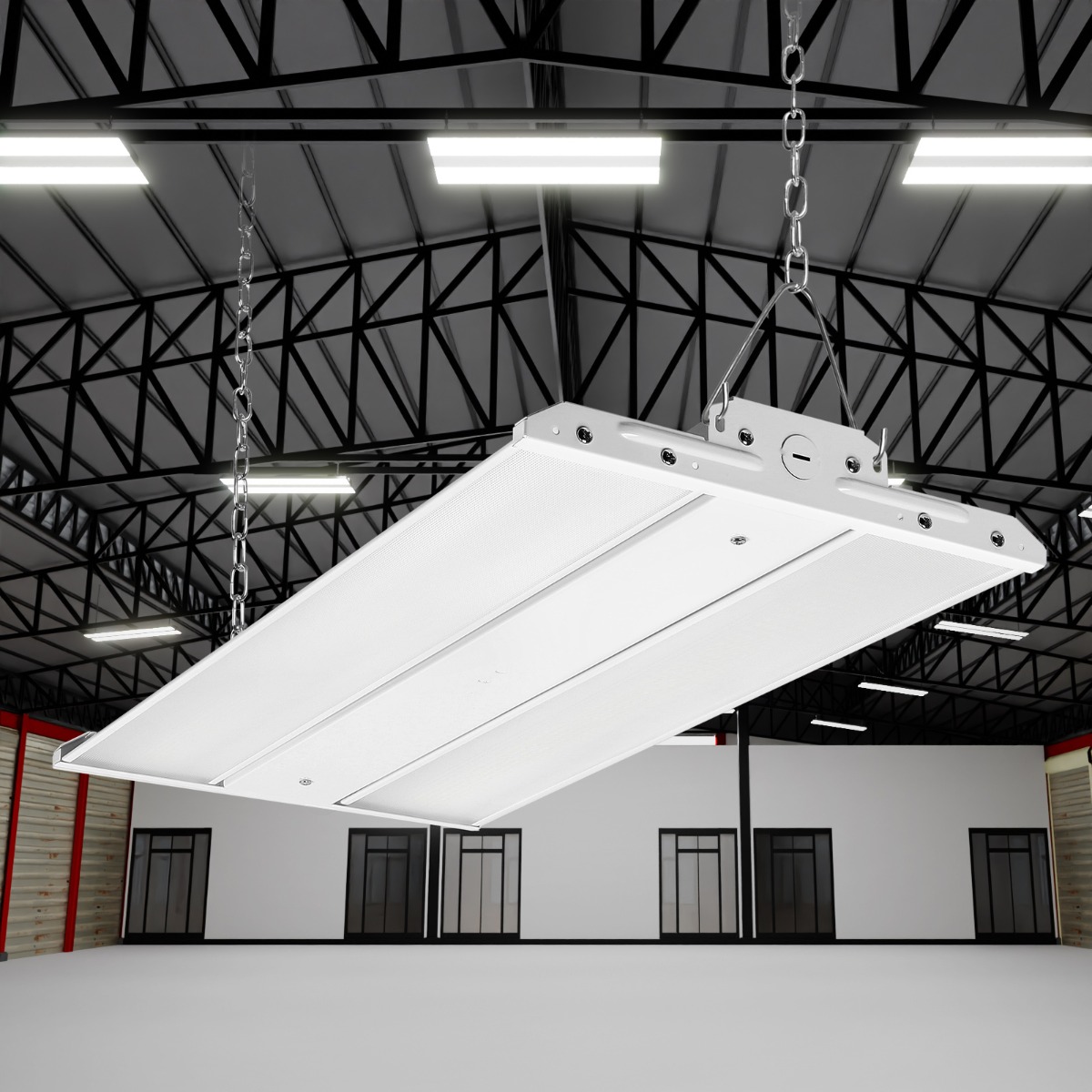

lepro 165w linear led high bay light

Super Heat Dissipation

These lights have been designed with a stamped housing and an air outlet for better heat dissipation, thereby increasing safety and longevity.

dimmable 165w linear led high bay light

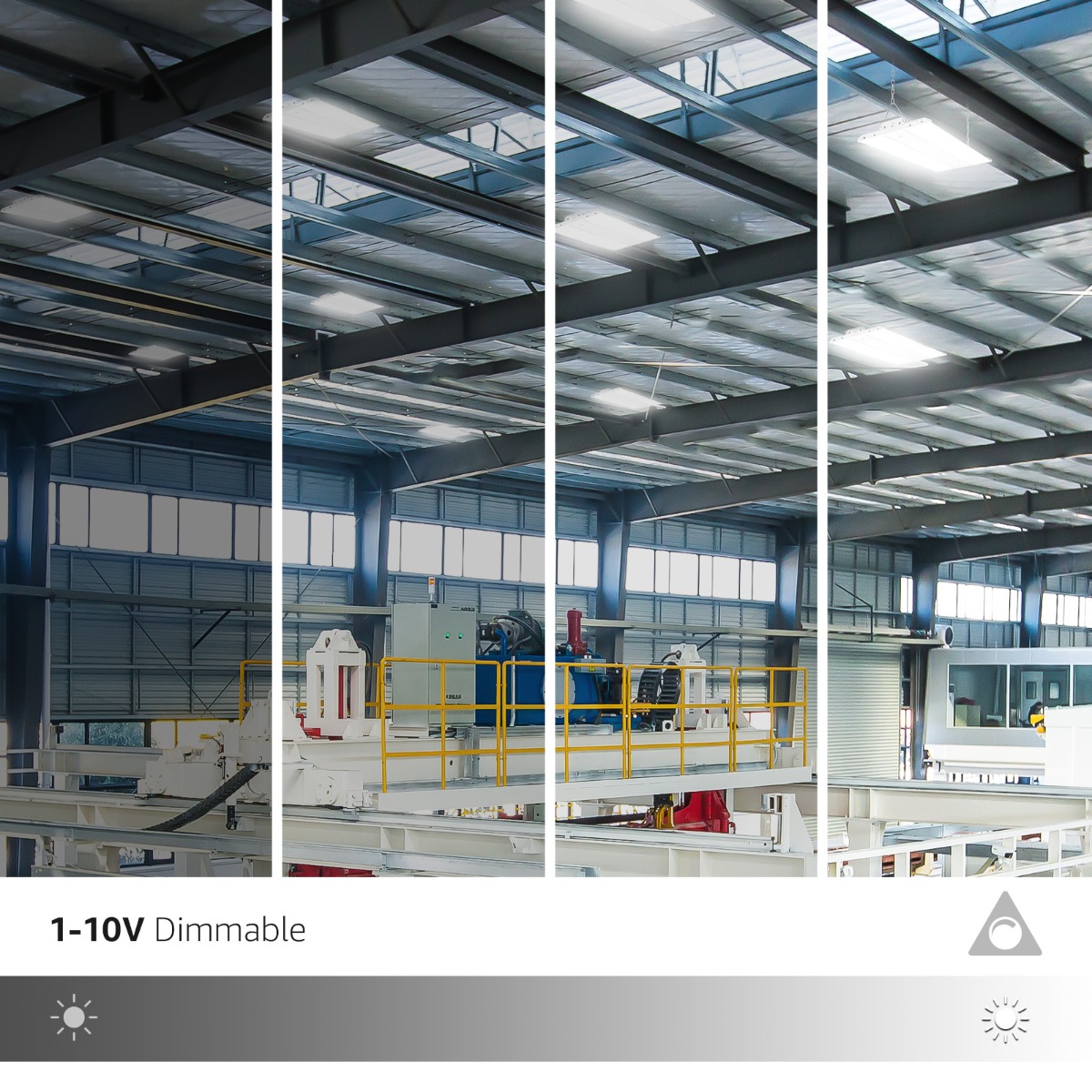

1-10V Dimmable

You can install and use dimmers to achieve your desired brightness between 10% and 100% in accordance with your needs.

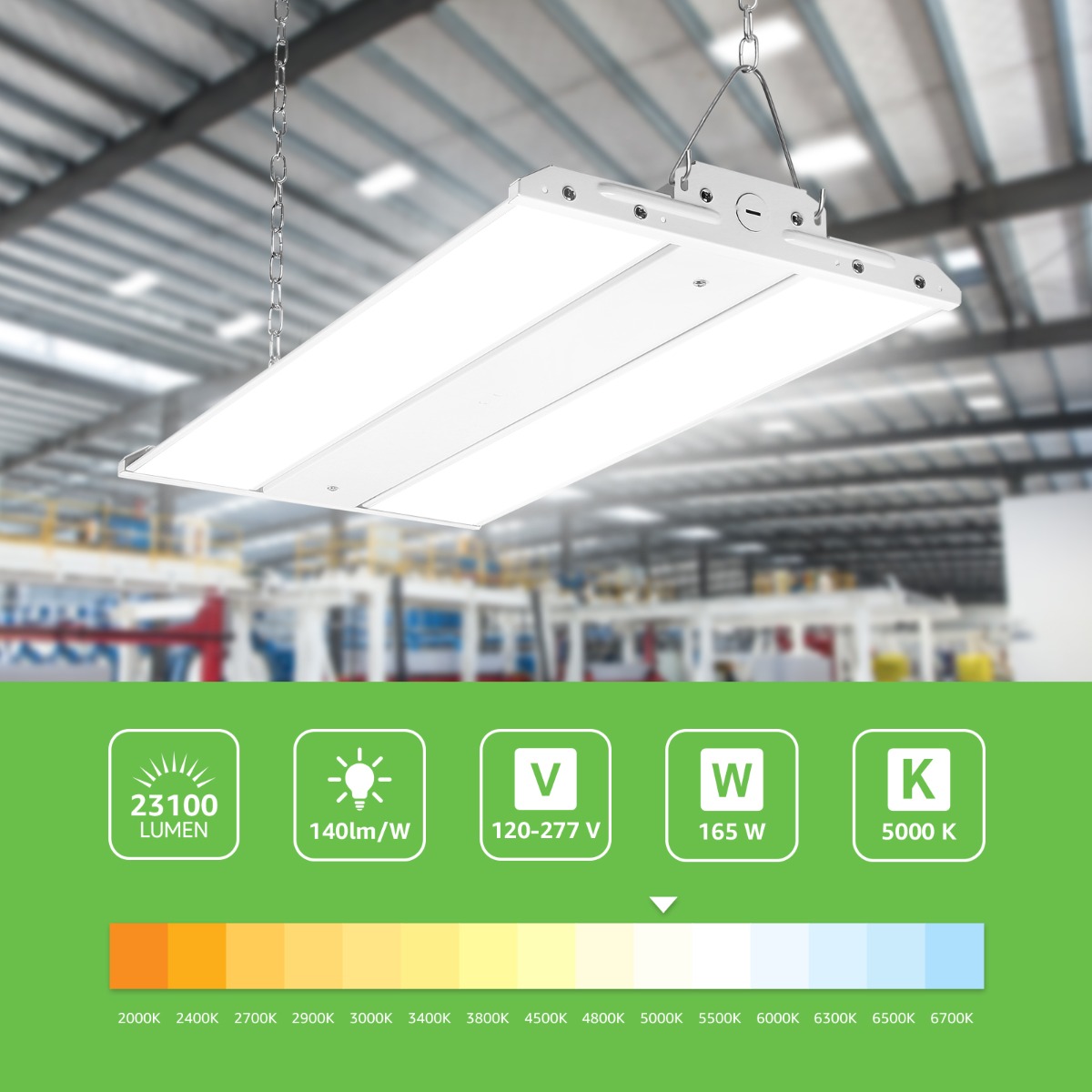

lepro 165w linear led high bay

High Efficiency

Our super bright 165W Linear LED High Bay Lights provide extremely high luminous efficiency of up to 140lm/W!

How to Install Lepro’s 165W LED Linear High Bay Lights

wiring 165w led linear high bay light
install 165w linear led high bay lights
hang 165w linear led high bay lighting fixture
165 watt lepro linear led high bay light

To install your new linear high bay lights, first disconnect your power supply for safety reasons. Then, loosen the screws to open the cover and remove the wires from the box. The black wire must be connected to the live wire, while the white wire must be connected with the neutral wire, and the green wire must be grounded and connected with the earth. After connecting the wires correctly, pass them through the holes in the cover and tighten the screws to lock the cover in place. Lastly, hang the chain and fix it to the rail. Re-connect your power supply and adjust your lighting to get started.

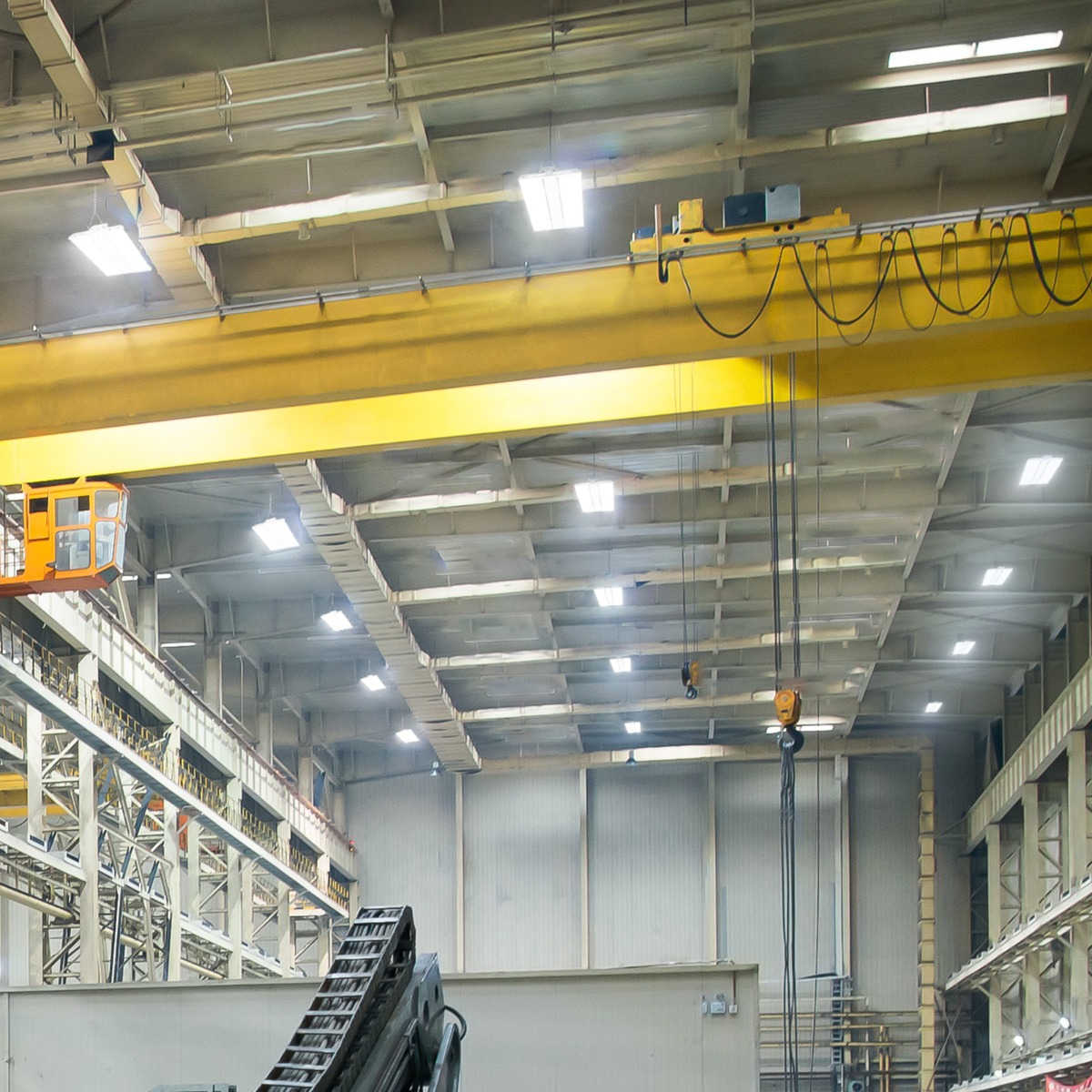

Widely Used Lepro 165W LED Linear High Bay Lights

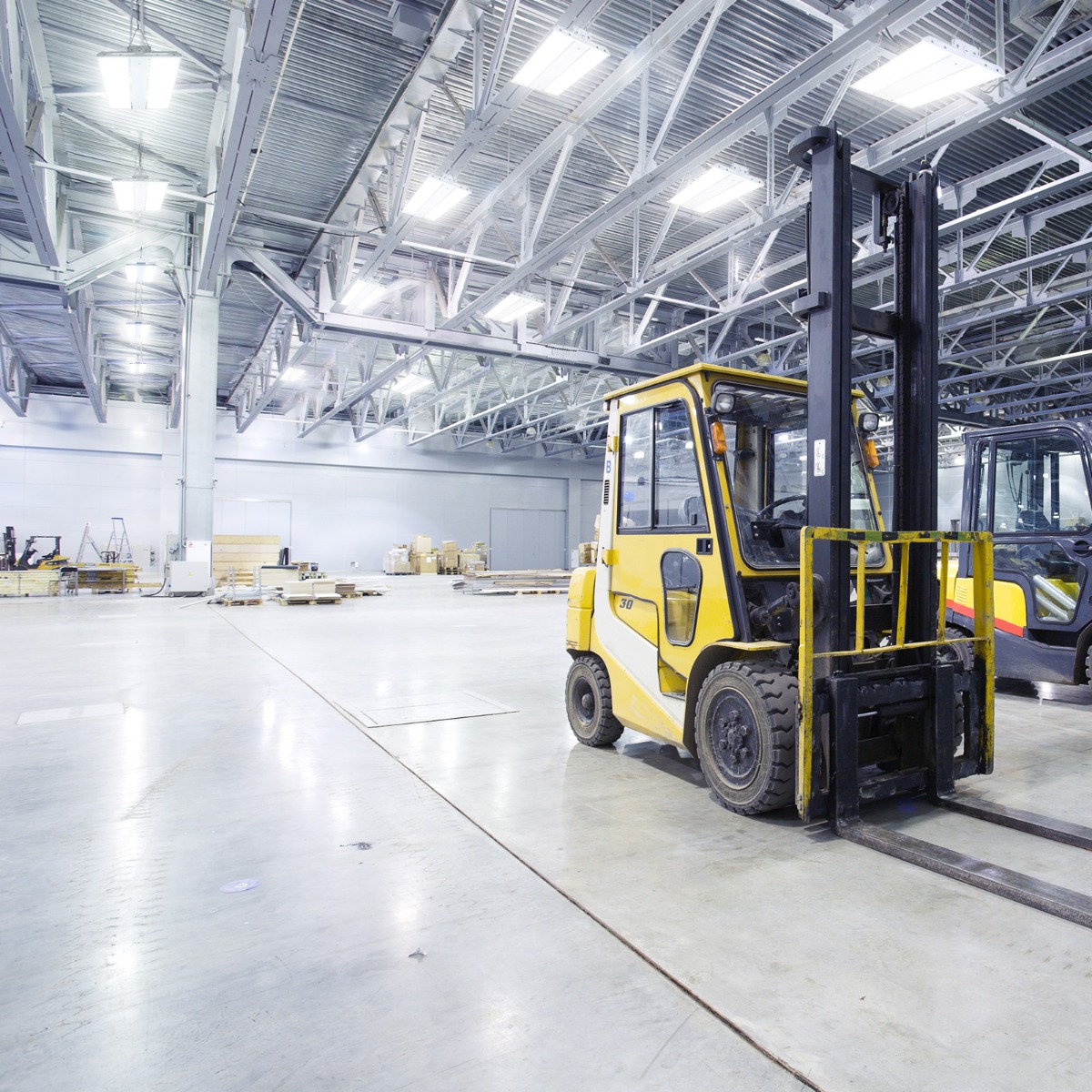

lepro 165w linear led high bay light for factories

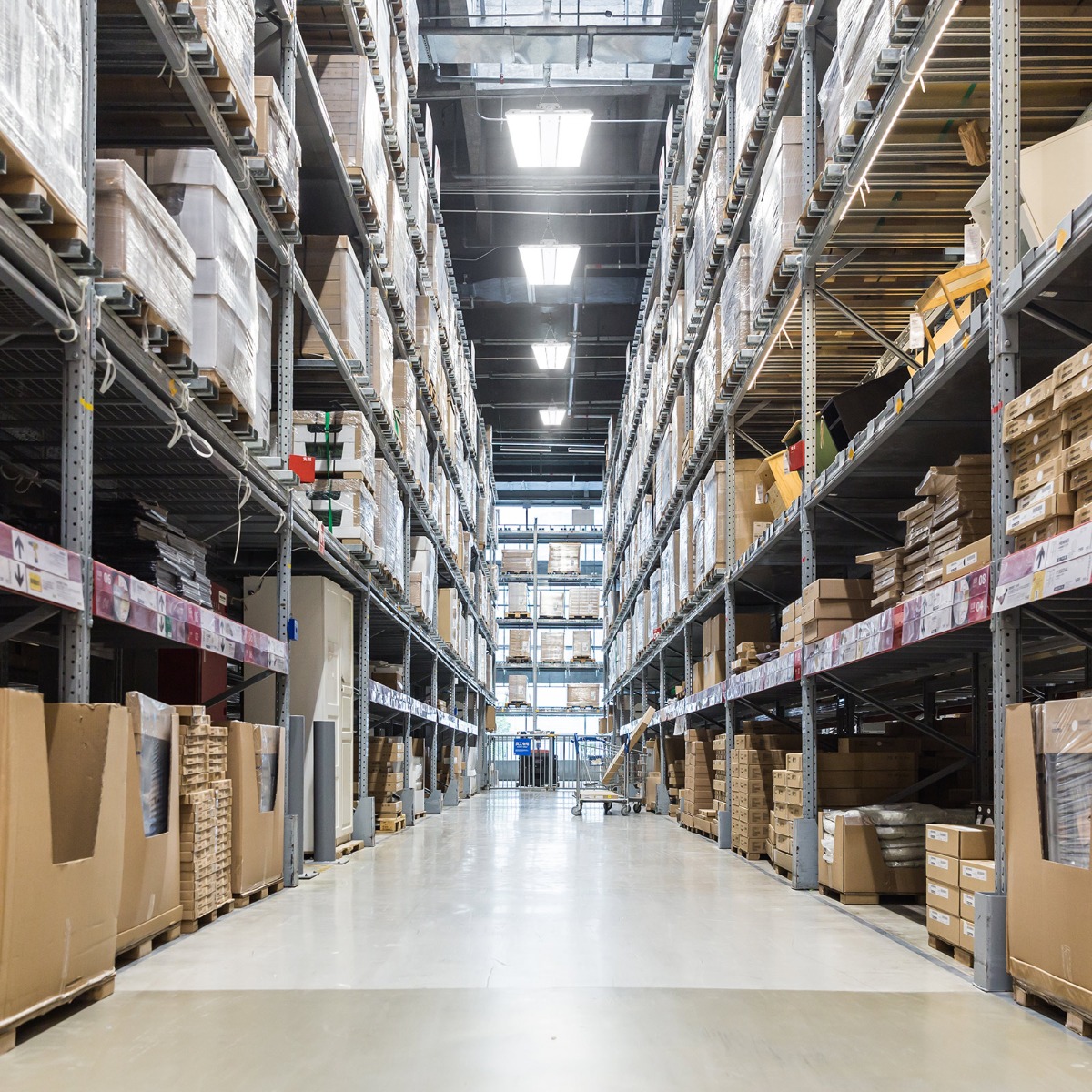

165w linear led high bay light for warehouse

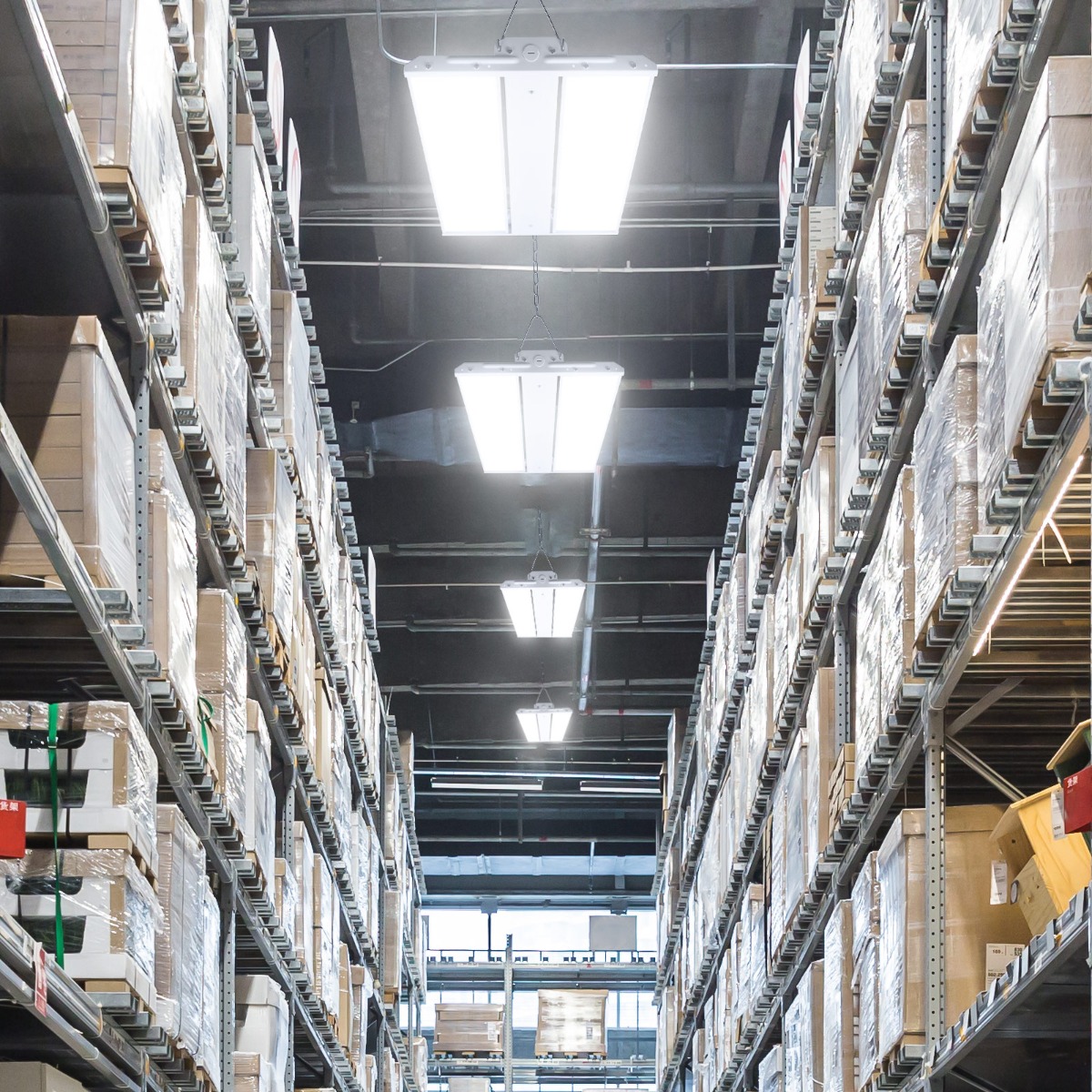

165w led linear high bay lights for warehouses
lepro 165w linear led high bay light for warehouse

Lepro’s 165W LED Linear High Bay Lights are frequently used to light indoor spaces in high-rise buildings such as factories, warehouses, garages, and large shopping malls. Even when suspended or mounted on ceilings of more than 15 feet, as all the way up to 30 feet, these lights still provide sufficient illuminations and lumens to meet lighting needs.

SKU 350012-NW-US Color Consistency (SDCM) <6
Power Consumption (W) 165 Brightness (lm) 23100
Metal Halide Equivalent(W) 400 LED Quantity 504
Light Color Neutral White Color Temperature (K) 5000
Dimmable Dimmable CRI 80
Beam Angle (Degree) 90 Input Voltage (v) 120-277V AC
Frequency (hz) 50/60 Power Factor >0.9

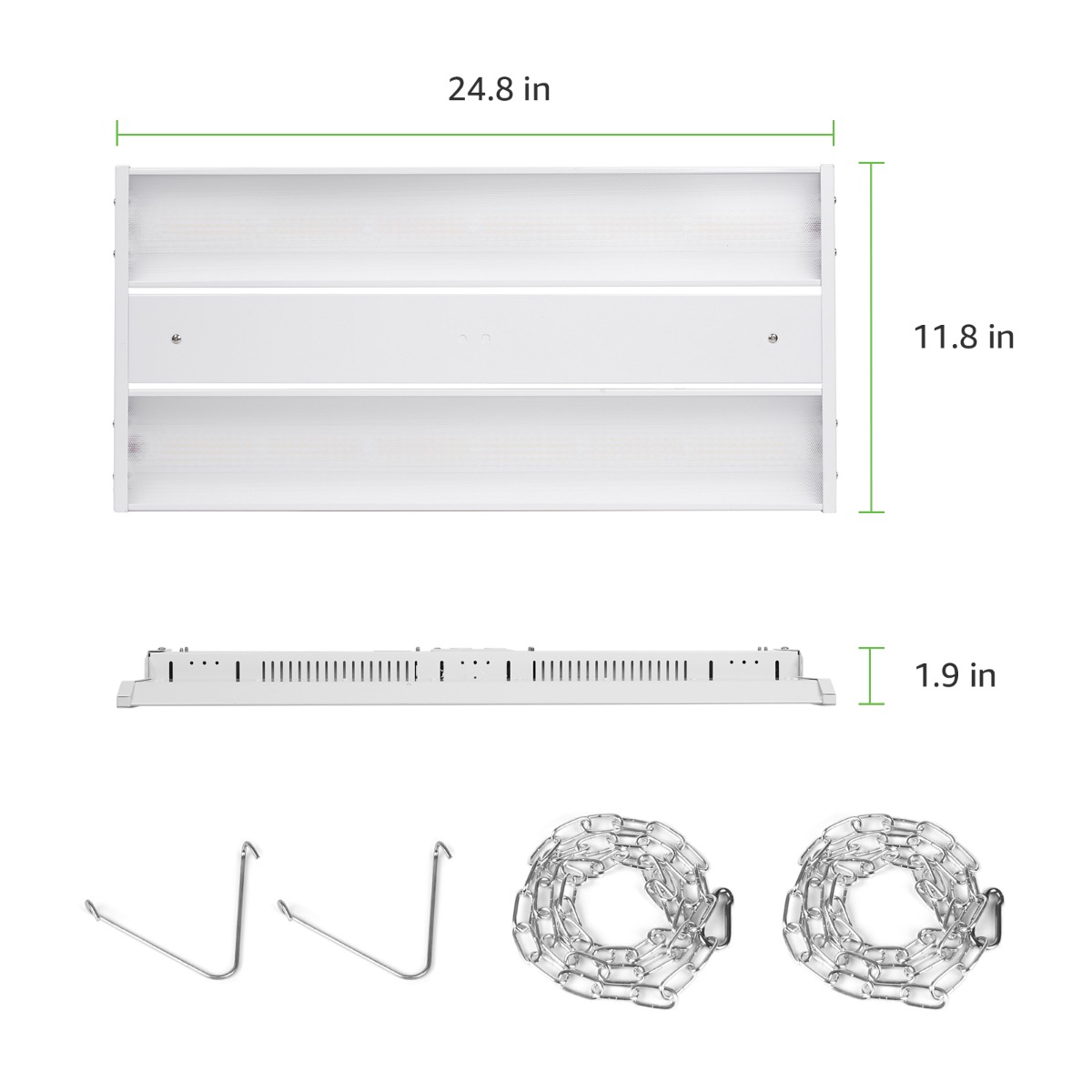

Lifespan (h) 50000 Length (in) 24.80
Width (in) 11.81 Height (in) 1.89
Net Weight (lb) 7.94 Material PMMA, SPCC
Waterproof No Protection Rating IP20
Safety Rating UL, FCC Package Quantity Pack of 1 Unit
Warranty 5 Years
