220W 2ft Dimmable Linear LED High Bay Light for Factories, Warehouses & Garages, 30,800 Lumens 5000K, DLC/UL Listed. 5-Year Warranty

220W 2ft Dimmable Linear LED High Bay Light for Factories, Warehouses & Garages, 30,800 Lumens 5000K, DLC/UL Listed. 5-Year Warranty 4 5 5 1
$121.99
MSRP $145.99
SKU
350013-NW-US
10%+ discount for business users Create a free business account
Local utility rebates may be available. Click here to find.
FREE 1-5 Days Shipping within U.S.
165W
220W
Over 50 units in stock

High Efficacy & Money Saving: The Lepro 220W 2ft LED linear high bay light provides 30,800 lumens of 5000K bright daylight white light, replacing a 500 watt metal halide light, saving 60% on energy costs.

Excellent Quality: Lepro 220W linear LED high bay light is UL listed with a safety guarantee; meanwhile, we also offer a five-year warranty for 100% satisfaction. Additionally, the luminaire can operate on any voltage range between 120V and 277V. These light sources emit flicker-free light and are designed with anti-surge protection to help protect the lamp from voltage spikes.

Easy Installation: The industrial-grade Lepro 220 watt linear LED high bay light can be easily mounted on the ceiling with the help of the chain that comes with the lighting fixture.

Dimmable: This 2ft 220W linear LED high bay is compatible with a wide range of 1-10V dimmers. The brightness level can be adjusted from 10% to 100% to meet your lighting needs in different scenarios.

Widely Used: The Lepro 220W linear high bay LED light is the ideal lighting fixture for high ceilings, especially for large spaces like warehouses, workshops, department stores, stadiums, garages, factories, etc.



Choose the Perfect Lepro LED High Bay Light

Product 100W LED UFO High Bay Light View Details 150W LED UFO High Bay Light View Details 240W LED UFO High Bay Light View Details 165W LED Linear High Bay Light View Details 220W LED Linear High Bay Light View Details
Sku 350009-NW-US 350010-NW-US 350011-NW-US 350012-NW-US 350013-NW-US
Power Consumption 100W 150W 240W 165W 220W
HID Equivalent 250W 400W 1000W 600W 800W
Luminous Flux 14,500 lm 21,750 lm 34,800 lm 23,100 lm 30,800 lm
Dimmable 0-10V 0-10V 0-10V 1-10V 1-10V
Recommended Mounting Height 12-18 ft 14-22 ft 19-28 ft 16-24 ft 18-28 ft
Lighting Coverage φ35 ft φ40 ft φ50 ft φ40 ft φ45 ft
Dimensions φ11.81" x 6.61" H φ11.81" x 6.61" H φ14.17" x 7.44" H 24.80"L x 11.81" W x 1.89" H 24.80"L x 14.17" W x 1.89" H
Download IES File Download Download Download Download Download

Best 220W Linear LED High Bay Lighting Fixture

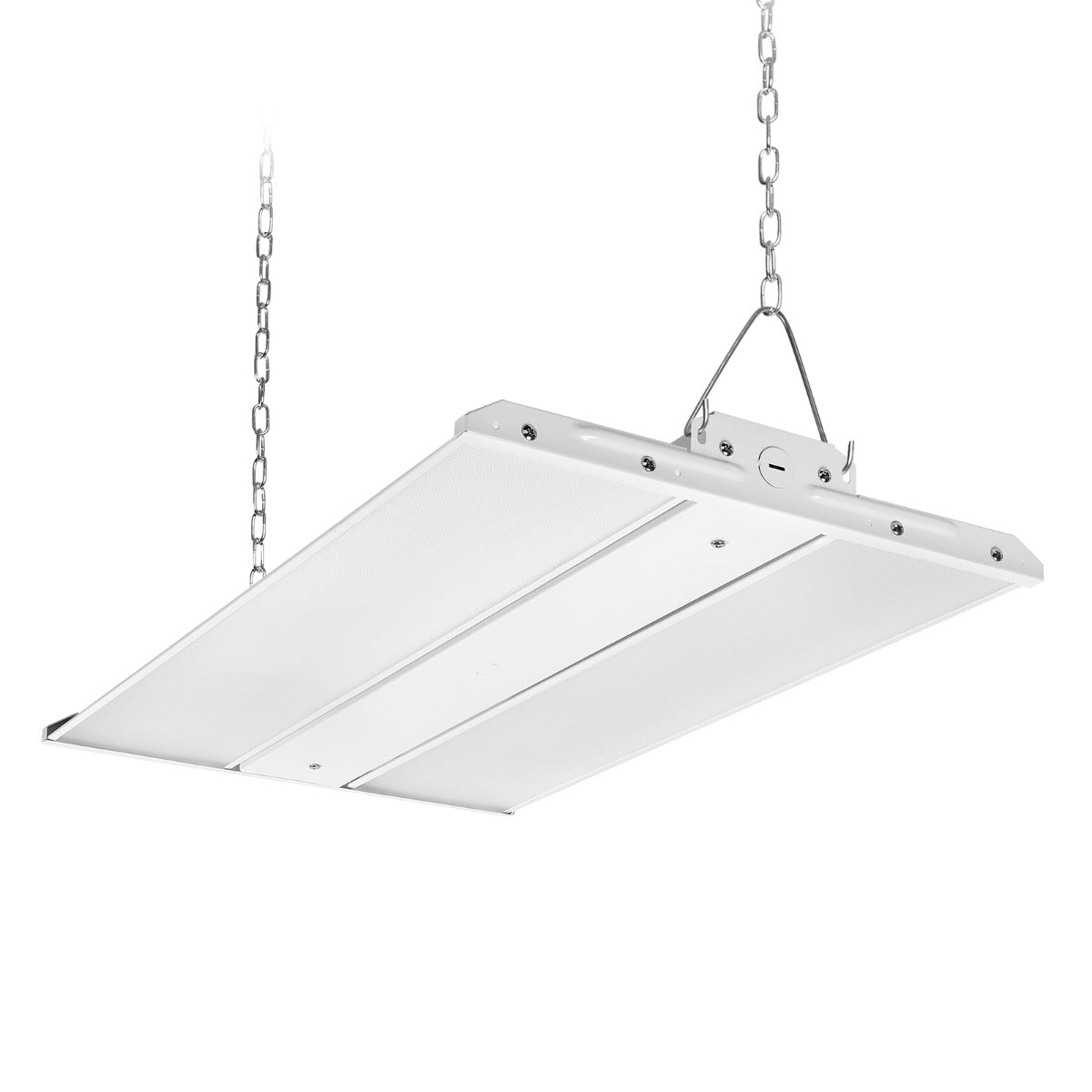

220w linear led high bay light

Key Features of 220W Lepro LED Linear High Bay Light

220w linear led high bay light certifications

DLC/UL Listed

Lepro 220W linear high bay is UL listed for safety insurance. You can also get DLC rebates easily.

lepro 220w linear led high bay light

Super Heat Dissipation

It has a stamped housing and air outlet design for better heat dissipation, which increases safety and longevity.

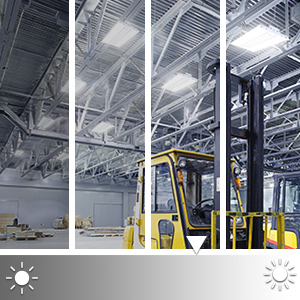

dimmable 220w linear led high bay light

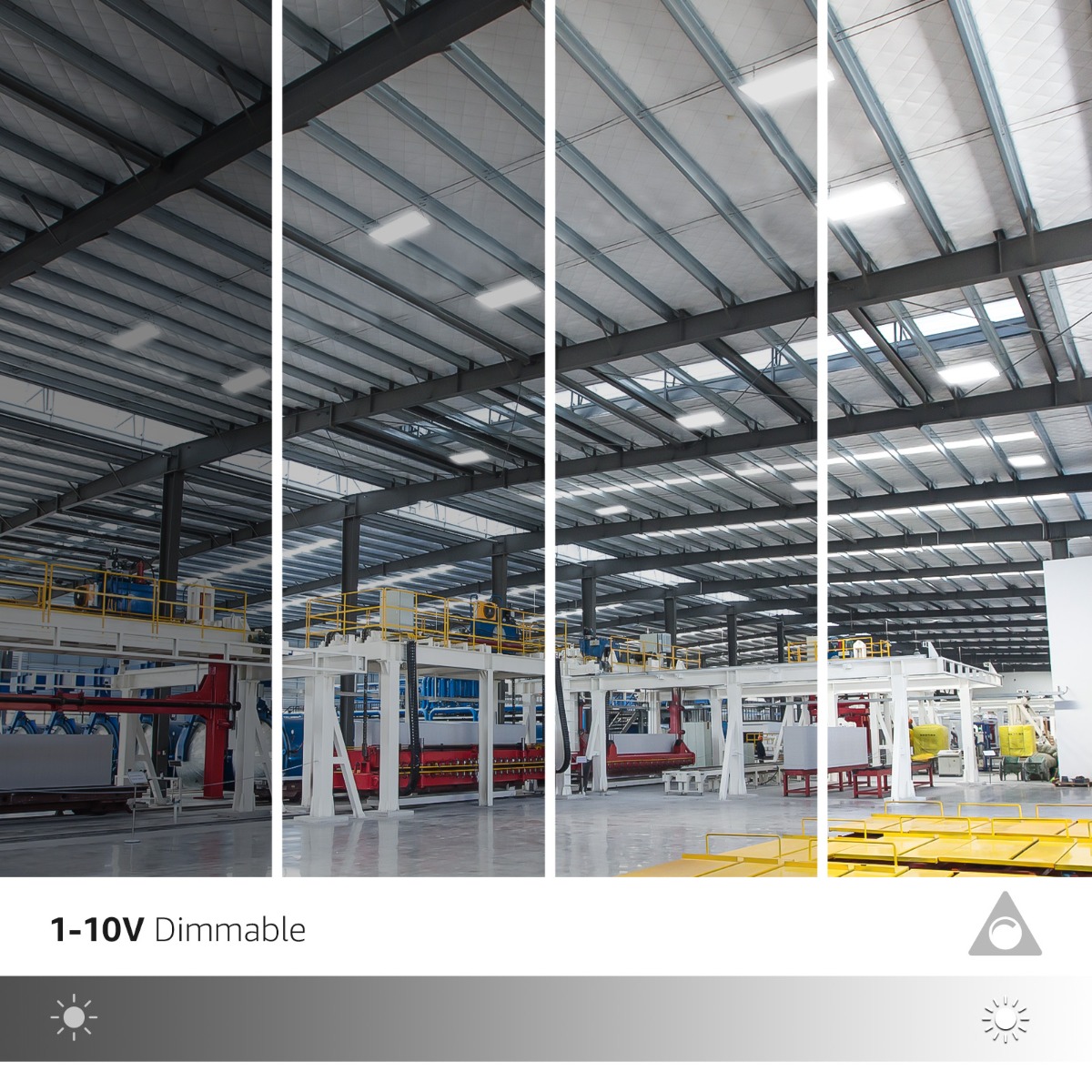

1-10V Dimmable

You can install and use the dimmer to choose the appropriate brightness from 10% to 100% according to your needs.

lepro 220w linear led high bay

High Efficiency

Super bright 220 watt linear LED high bay light provides high luminous efficiency up to 140lm/W.

How to Install Lepro 220 Watt LED Linear High Bay Light

wiring 220w led linear high bay light
install 220w linear led high bay lights
hang 220w linear led high bay lighting fixture
220 watt lepro linear led high bay light

To install a linear high bay light, disconnect the power supply. Then loosen the screw to open the cover and take out the wires from the box. The black wire is connected to the live wire, the white wire is connected to the neutral wire, and the green wire is connected to the earth. After connecting the wires, pass the wires through the holes in the cover and tighten the screws to close the cover. After that, hang the chain and fix the chain to the rail. Finally, connect power and adjust lighting to get started.

Widely Used Lepro 220W LED Linear High Bay Lights

lepro 220w linear led high bay light for factories

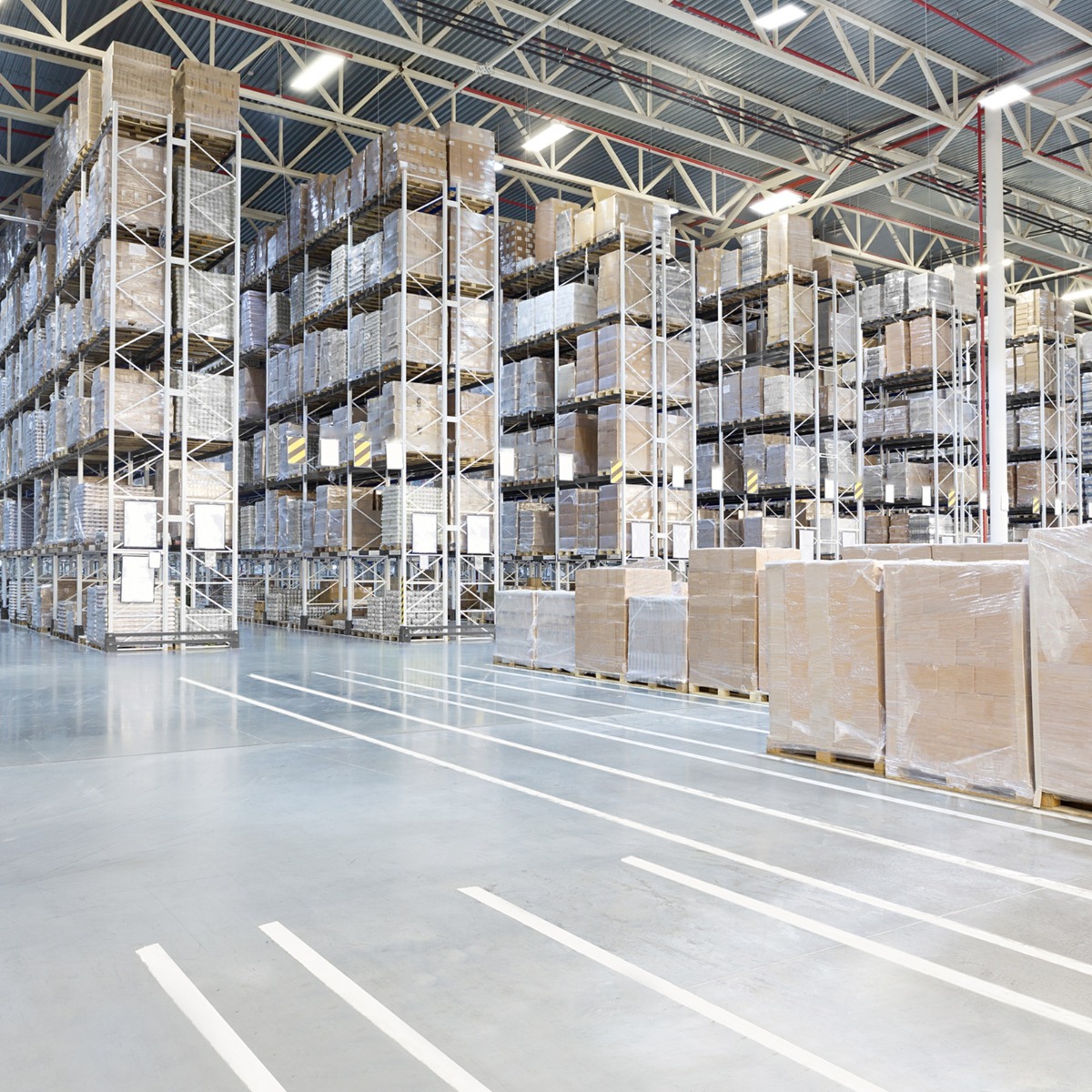

220w linear led high bay light for warehouse

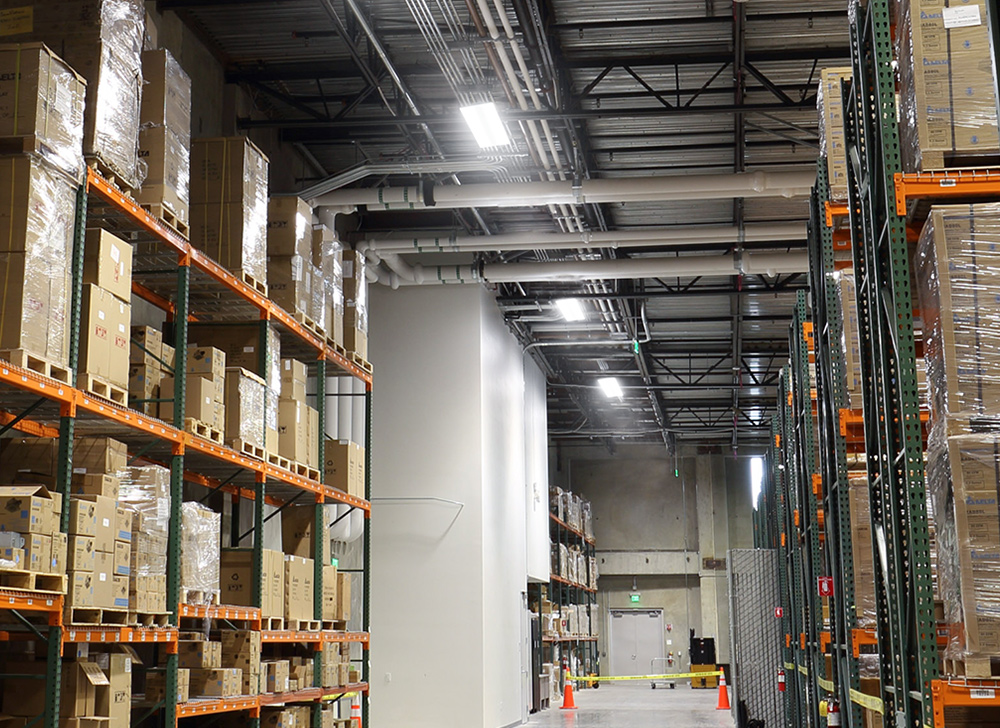

220w led linear high bay lights for warehouses
lepro 220w linear led high bay light for warehouse

Lepro 220 watt LED linear high bay lights are mainly used for indoor lighting in high-rise spaces such as factories, warehouses, garages, and large shopping malls. When suspended or mounted on ceilings more than 15 feet above the ground, or even as high as 30 feet, the linear LED high bay light still provides sufficient illuminance and lumens to meet lighting needs.

SKU 350013-NW-US Color Consistency (SDCM) <6
Power Consumption (W) 220 Brightness (lm) 30800
Metal Halide Equivalent(W) 500 LED Quantity 660
Light Color Neutral White Color Temperature (K) 5000
Dimmable Dimmable CRI 80
Beam Angle (Degree) 90 Input Voltage (v) 120-277V AC
Frequency (hz) 50/60 Power Factor 0.9
Lifespan (h) 50000 Length (in) 24.80
Width (in) 14.17 Height (in) 1.89
Net Weight (lb) 9.04 Material PMMA, SPCC
Waterproof No Protection Rating IP20
Safety Rating UL, FCC Package Quantity Pack of 1 Unit
Warranty 5 Years Energy Rating DLC5.1
