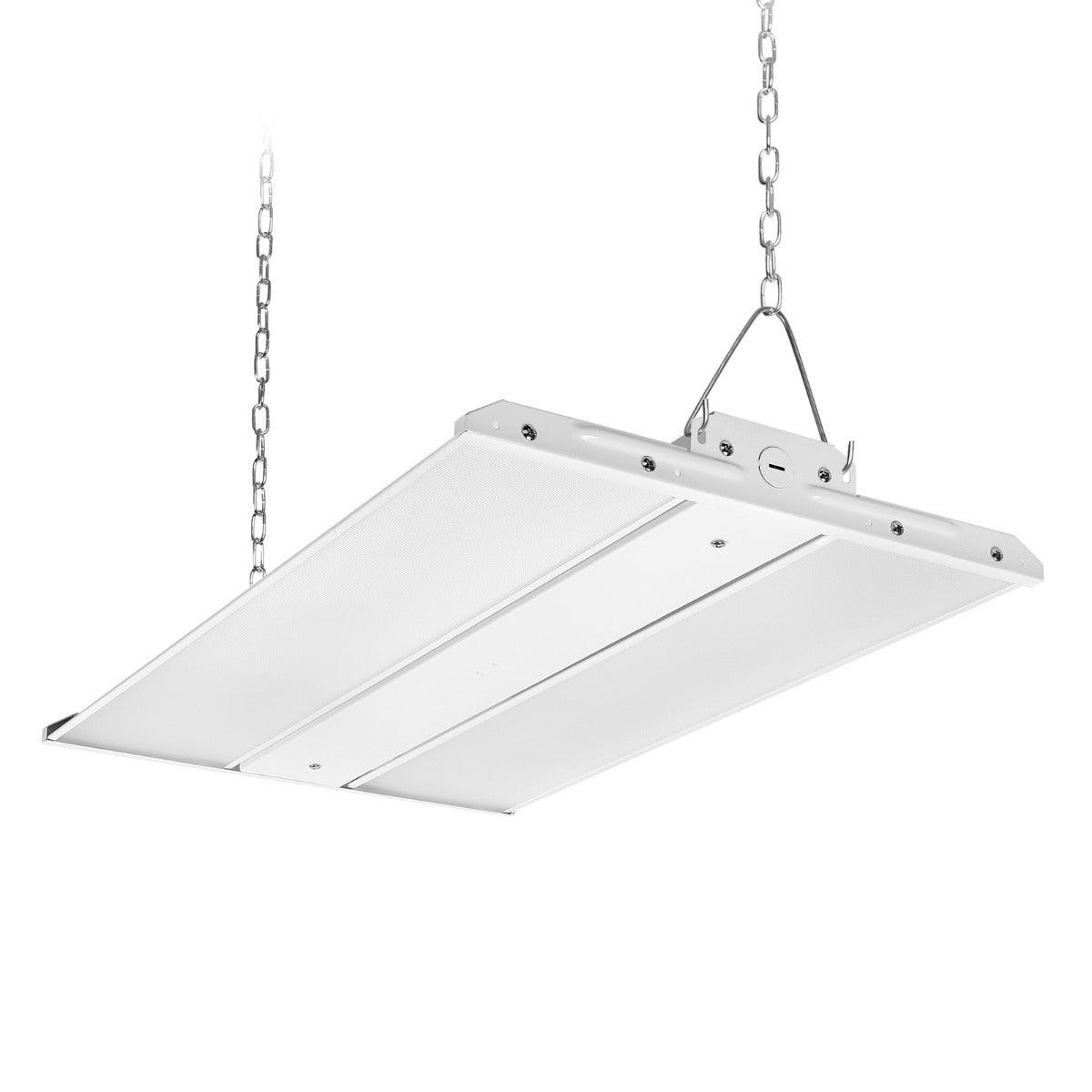

Lepro 220W 2ft Dimmable Linear LED High Bay Light for Factories
Lepro 220W 2ft Dimmable Linear LED High Bay Light for Factories
Couldn't load pickup availability
High Efficacy & Money Saving: The Lepro 220W 2ft LED linear high bay light provides 30,800 lumens of 5000K bright daylight white light, replacing a 500 watt metal halide light, saving 60% on energy costs.
Excellent Quality: Lepro 220W linear LED high bay light is UL listed with a safety guarantee; meanwhile, we also offer a five-year warranty for 100% satisfaction. Additionally, the luminaire can operate on any voltage range between 120V and 277V. These light sources emit flicker-free light and are designed with anti-surge protection to help protect the lamp from voltage spikes.
Easy Installation: The industrial-grade Lepro 220 watt linear LED high bay light can be easily mounted on the ceiling with the help of the chain that comes with the lighting fixture.
Dimmable: This 2ft 220W linear LED high bay is compatible with a wide range of 1-10V dimmers. The brightness level can be adjusted from 10% to 100% to meet your lighting needs in different scenarios.
Widely Used: The Lepro 220W linear high bay LED light is the ideal lighting fixture for high ceilings, especially for large spaces like warehouses, workshops, department stores, stadiums, garages, factories, etc.
Recommended 1-10V Dimmer
Leviton: DS710-10Z/IP710
Legrand: RH4FBL3PW
Lutron: NFTV-IV/NTSTV-DV/DVTV-WH
Choose the Perfect Lepro LED High Bay Light
| Product | 165W LED Linear High Bay Light View Details | 220W LED Linear High Bay Light View Details |
|---|---|---|
| Sku | 350012-NW-US | 350013-NW-US |
| Power Consumption | 165W | 220W |
| HID Equivalent | 600W | 800W |
| Luminous Flux | 23,100 lm | 30,800 lm |
| Dimmable | 1-10V | 1-10V |
| Recommended Mounting Height | 16-24 ft | 18-28 ft |
| Lighting Coverage | φ40 ft | φ45 ft |
| Dimensions | 24.80"L x 11.81" W x 1.89" H | 24.80"L x 14.17" W x 1.89" H |
| Download IES File | Download | Download |
Best 220W Linear LED High Bay Lighting Fixture
Key Features of 220W Lepro LED Linear High Bay Light
DLC/UL Listed
Lepro 220W linear high bay is UL listed for safety insurance. You can also get DLC rebates easily.
Super Heat Dissipation
It has a stamped housing and air outlet design for better heat dissipation, which increases safety and longevity.
1-10V Dimmable
You can install and use the dimmer to choose the appropriate brightness from 10% to 100% according to your needs.
High Efficiency
Super bright 220 watt linear LED high bay light provides high luminous efficiency up to 140lm/W.
How to Install Lepro 220 Watt LED Linear High Bay Light
To install a linear high bay light, disconnect the power supply. Then loosen the screw to open the cover and take out the wires from the box. The black wire is connected to the live wire, the white wire is connected to the neutral wire, and the green wire is connected to the earth. After connecting the wires, pass the wires through the holes in the cover and tighten the screws to close the cover. After that, hang the chain and fix the chain to the rail. Finally, connect power and adjust lighting to get started.
Widely Used Lepro 220W LED Linear High Bay Lights
Lepro 220 watt LED linear high bay lights are mainly used for indoor lighting in high-rise spaces such as factories, warehouses, garages, and large shopping malls. When suspended or mounted on ceilings more than 15 feet above the ground, or even as high as 30 feet, the linear LED high bay light still provides sufficient illuminance and lumens to meet lighting needs.
